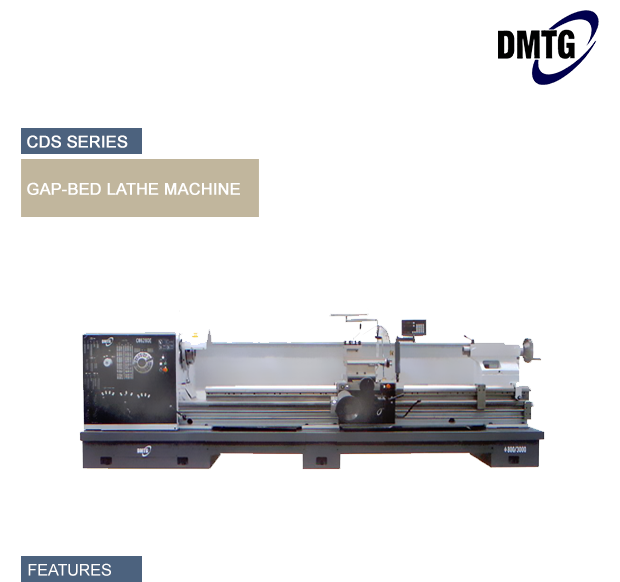

CDS Series
- High speed dynamically balanced spindle using the latest machinetool technology
- Solid cast iron structure guaranteeing the rigidity of bed, headstock and saddle
- Stress relieved bed and induction hardened guide ways provide the machine with all-round rigidity and longer life
- Precision ground bed slideways guarantees high accuracy along the total length of the machine
- New-type gear box and high precision spindle structure providing near perfect headstock
- Totally-enclosed feed box making a wide range of thread machining possible
- The lead screw is protected with a metal guard preventing the ingress of dust and increasing operator safety.
|
Item |
CDS6240/50/56/66/76B |
CDS6240/50/56/66/76C |
|||
|
Max. swing over bed |
400/500/560/660/760mm |
||||
|
Max. swing over carriage |
230/290/350/440/540mm |
||||
|
Max. swing over gap |
700/760/780/870/965mm |
||||
|
Width of gap |
250mm |
||||
|
Max. length of work piece |
1000/1500/2000/3000mm |
||||
|
Width of guide way |
394mm |
||||
|
Spindle nose |
D8 |
||||
|
Spindle speed |
26-2000rpm |
23-1800rpm |
26-1700rpm |
23-1530rpm |
|
|
Dia. of spindle bore |
82mm |
105mm |
|||
|
Taper of spindle bore |
90/1:20 |
110/1:20 |
|||
|
Longitudinal feed |
0.044-1.48mm/rev |
||||
|
Cross feed |
0.022-0.74mm/rev |
||||
|
Metric thread |
0.35-80mm(53 or 77) |
||||
|
Inch thread |
7/16-80tpi(47) |
||||
|
Module thread |
0.2-40mm(45 or 66) |
||||
|
Diametrical pitch thread |
7/8-160 DP (42) |
||||
|
Max. travel of cross slide |
348/348/348/355/355mm |
||||
|
Travel of top slide |
150mm |
||||
|
Travel of tailstock quill |
150mm |
||||
|
Diameter of tailstock quill |
75mm |
||||
|
Taper bore of tailstock quill |
M5 |
||||
|
Main motor power |
10HP(7.5kW)/15HP(11kW.OPTIONAL) |
||||
