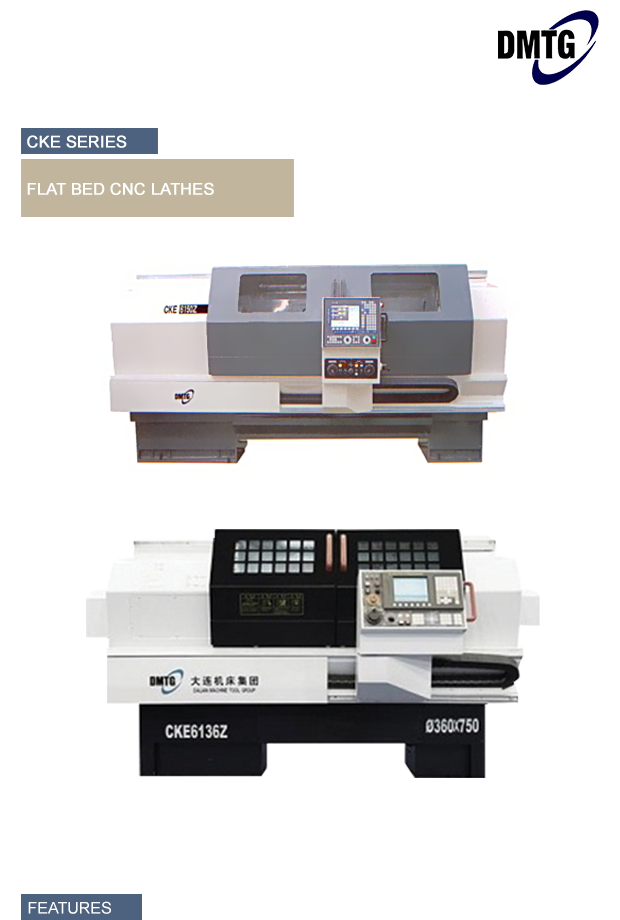

CKE Series
- All main components, bed, headstock, saddle, plinth etc are high quality solid castings
- Low friction Turcite-B coating on all surfaces between saddle and guideways
- Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability
- Centralised oil system provides forced automatic lubrication onto ballscrews and surfaces
- Choice of two model ranges. THE CKE-Z series has automatic headstock gear change, wide range high spindle speed and low noise levels of under 80db. The CKE-i series, with independent spindle structure, utilises a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.
- Operator adjustable control panel enables convenient tool setting
- Fully enclosed guards with interlock offer a waterproof and chip-free environment
- Horizontal 4-P automatic indexing toolpost is provided as standard, while vertical 4-P toolpost, horizontal 6-P toolpost, quick-change toolpost etc can also be supplied to suit customers’ specific requirements
- Optional pneumatic or hydraulic chuck and tailstock are available
- FANUC, SIEMENS, FAGOR etc control systems can be supplied. E-handwheel function is also available
| CKE Series | CKE6136Z | CKE6140Z | CKE6150Z | CKE6156Z | |
|---|---|---|---|---|---|
| Max.Swing Over Bed | mm | 360 | 400 | 500 | 560 |
| Width of Bed | mm | 300 | 300 | 400 | 400 |
| Max.Length of Workpiece | mm | 750 1000 | 750 1000 | 750 1000 1500 2000 | 750 1000 1500 2000 |
| Max.Swing Over Slide | mm | 180 | 200 | 280 | 330 |
| Spindle Nose | A2-6/D6 | A2-6/D6 | D8 | D8 | |
| Chuck Size | mm | 200 | 200 | 250 | 250 |
| Spindle Bore | mm | 52 | 52 | 82 | 82 |
| Spindle Speed | rpm | 20-2500 | 20-2500 | 7~2200 | 7~2200 |
| Steps of Spindle Speed | 2-step | 2-step | 3-step | 3-step | |
| Spindle Motor | hp | 7.5 | 7.5 | 10hp | 10hp |
| X Axis Travel | mm | 205 | 225 | 280 | 305 |
| Z Axis Travel | mm | 620 870 | 620 870 | 680 930 1430 1930 | 680 930 1430 1930 |
| CKE Series | CKE6136Z | CKE6140Z | CKE6150Z | CKE6156Z | |
|---|---|---|---|---|---|
| Max.Swing Over Bed | inch | 14.17 | 15.75 | 19.69 | 20.05 |
| Width of Bed | inch | 11.81 | 11.81 | 15.75 | 15.75 |
| Max.Length of Workpiece | inch | 29.53/39.37 | 29.53/39.37 | 29.53/39.37/ 59.06/78.74 |
29.53/39.37/ 59.06/78.74 |
| Max.Swing Over Slide | inch | 7.09 | 7.87 | 11 | 13 |
| Spindle Nose | D1-6 | D1-6 | D1-8 | D1-8 | |
| Chuck Size | inch | 7.87 | 7.87 | 9.84 | 9.84 |
| Spindle Bore | inch | 2.05 | 2.05 | 3.23 | 3.23 |
| Spindle Speed | rpm | 20-2500 | 20-2500 | 7~2200 | 7~2200 |
| Steps of Spindle Speed | 2-step | 2-step | 3-step | 3-step | |
| Spindle Motor | hp | 7.5 | 7.5 | 10hp | 10hp |
| X Axis Travel | inch | 8.07 | 8.86 | 11 | 12 |
| Z Axis Travel | inch | 24.4/34.25 | 24.4/34.25 | 26.77/36.61/ 56.3/75.98 |
26.77/36.61/ 56.3/75.98 |
| X Axis Rapid Traverse | inch/min | 157 | 157 | 236 | 236 |
| Z Axis Rapid Traverse | inch/min | 197 | 197 | 394 | 394 |
| Positioning Accuracy, X axis (JIS) | inch (+/-) | 0.00044 | 0.00044 | 0.00044 | 0.00044 |
| Positioning Accuracy, Z axis (JIS) | inch (+/-) | 0.00058 | 0.00058 | 0.00058 | 0.00058 |
| Repeatability, X axis (JIS) | inch (+/-) | 0.00017 | 0.00017 | 0.00017 | 0.00017 |
| Repeatability, Z axis (JIS) | inch (+/-) | 0.00023 | 0.00023 | 0.00023 | 0.00023 |
| Vertical 4-position Turret Indexing Time | sec. | 2.4 | 2.4 | 2.4 | 2.4 |
| Diameter of Tailstock Quill | inch | 2.36 | 2.36 | 2.95 | 2.95 |
| Travel of Tailstock Quill | inch | 5.12 | 5.12 | 5.91 | 5.91 |
| Taper of Tailstock Quill | MT | 4 | 4 | 5 | 5 |
| Net Weight | lbs | 3970/4300 | 3970/4300 | 5620/5735/ 5955/6175 | 5735/5845/ 6065/6285 |
| Control Type | type | Anilam/ Fagor/Fanuc | Anilam/ Fagor/Fanuc | Anilam/ Fagor/Fanuc | Anilam/ Fagor/Fanuc |
