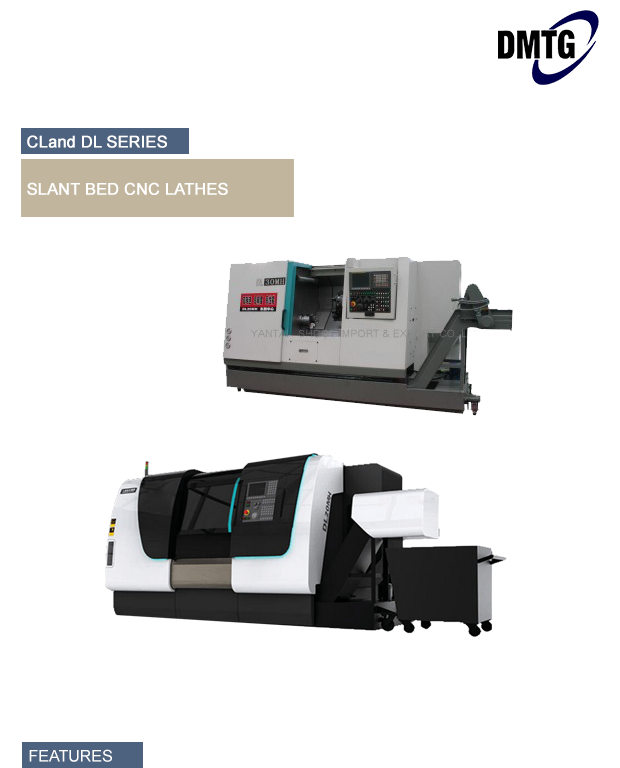

CL and DL Series
- The new CL and DL series of CNC slant bed lathes have rigid cast-iron structure hardened (50-52HRc) and ground to guarantee high precision and stability. Machine beds are made of heat stabilised cast iron. A wide range of machine configurations are available with spindles from ASA-5 to ASA-15, power up to 30 KW and turning length up to 3000mm. A wide range of options and accessories are available to customise the lathe for specific applications.
| CL & DL Series | CL15 | CL-20 | DL-20M | DL-25M | |
|---|---|---|---|---|---|
| Swing Over Bed | inch | 15.75 | 17.3 | 17.3 | 20.47 |
| Swing Over Cross Slide | inch | 6.29 | 11.81 | 11 | 13.80 |
| Maximum Turning Diameter (shafts) | inch | 6.3 | 10.24 | 10.24 | 12.20 |
| Maximum Turning Diameter (discs) | inch | 7.87 | 11.81 | 15.75 | 19.69 |
| Maximum Turning Length | inch | 9.8/12.6 | 19.69 | 23.62/39.37 | 23.62/39.37 |
| Slant of Bed | 60° | 45° | 45° | 45° | |
| Spindle Nose | type | A2-5 | A2-6 | A2-6 | A2-8 |
| Chuck Size | inch | 6 | 8 | 8 | 10 |
| Spindle Bore Diameter | inch | 1.81 | 2.44 | 3 | 3.42 |
| Bar Capacity | inch | 1.26 | 2 | 2.56 | 2.91 |
| Spindle Speed | rpm | 5000 | 4500 | 4500 | 3500.00 |
| Spindle Motor 30 Min. | hp | 10 | 20 | 20 | 30.00 |
| X Axis Travel | inch | 4.72 | 6.5 | 10.43 | 10.24 |
| Z Axis Travel | inch | 10.24/.13 | 20 | 27.6/40.94 | 43.3 / 59 |
| X Axis Rapid Traverse | inch/min | 590 | 630 | 945 | 472.00 |
| Z Axis Rapid Traverse | inch/min | 710 | 788 | 945 | 472.00 |
| Type of Slide Way X / Z Axis | type | Linear | Linear | Linear | Box |
| Positioning Accuracy （JIS） | inch (+/-) | 0.0002 | 0.0002 | 0.0002 | 0.00 |
| Repeatability （JIS） | inch (+/-) | 0.0001 | 0.0001 | 0.0001 | 0.00 |
| Number of Tools | qty. | 8 | 8 | 12 | 12.00 |
| Tool to Tool Index Time (Adjacent) | sec. | 0.3 | 0.3 | 0.3 | 0.3 |
| Tool to Tool Index Time (Furthest) | sec. | 1.3 | 1.3 | 1.3 | 1.30 |
| Diameter of Tailstock Quill | inch | 2.36 | 3.15 | 3.35 | 3.94 |
| Travel of Tailstock Quill | inch | 3.15 | 5.12 | 5.47 | 5.47 |
| Taper of Tailstock Quill | MT | 3 | 3 | 5 | 5 |
| Net Weight | lbs | 7275 / 7720 | 10582 | 12125 / 14330 | 17200 / 18300 |
| Control Type | type | Fanuc 0i | Fanuc 0i | Fanuc 0i | Fanuc 0i |
| CL & DL Series | DL-30M | DL-32M | DL-40 | |
|---|---|---|---|---|
| Swing Over Bed | inch | 24.6 | 26.77 | 31.49 |
| Swing Over Cross Slide | inch | 12.2 | 15.74 | 21.6 |
| Maximum Turning Diameter (shafts) | inch | 12.2 | 15.74 | 21.65 |
| Maximum Turning Diameter (discs) | inch | 23.6 | 24.8 | 29.5 |
| Maximum Turning Length | inch | 39.37 | 39.37/ 59.05/78.74 | 78.74/98.4/118 |
| Slant of Bed | 45° | 45° | 70° | |
| Spindle Nose | type | A2-8 | A2-11 | A2-11 |
| Chuck Size | inch | 12 | 15 | 15 |
| Spindle Bore Diameter | inch | 3.46 | 3.94 | 3.94 |
| Bar Capacity | inch | 2.91 | 3.31 | 3.31 |
| Spindle Speed | rpm | 3000 | 2000 | 2000 |
| Spindle Motor 30 Min. | hp | 30 | 40 | 40 |
| X Axis Travel | inch | 12.79 | 14.76 | 14.76 |
| Z Axis Travel | inch | 43.7 | 40.55/ 60.23 / 79.92 | 85/104.7/124.4 |
| X Axis Rapid Traverse | inch/min | 945 | 512 | 472 |
| Z Axis Rapid Traverse | inch/min | 945 | 512 | 630 |
| Type of Slide Way X / Z Axis | type | Linear | Box | Box |
| Positioning Accuracy （JIS） | inch (+/-) | 0.0002 | 0.0002 | 0.0002 |
| Repeatability （JIS） | inch (+/-) | 0.0001 | 0.0001 | 0.0001 |
| Number of Tools | qty. | 12 | 12 | 12 |
| Tool to Tool Index Time (Adjacent) | sec. | 0.3 | 0.3 | 0.3 |
| Tool to Tool Index Time (Furthest) | sec. | 1.3 | 1.3 | 1.3 |
| Diameter of Tailstock Quill | inch | 5.5 | 6.3 | 6.3 |
| Travel of Tailstock Quill | inch | 5.9 | 7.1 | 7.1 |
| Taper of Tailstock Quill | MT | 5 | 5 | 5 |
| Net Weight | lbs | 18750 | 24200/26400/28660 | 28660 / 30860 /33100 |
| Control Type | type | Fanuc 0i | Fanuc 0i | Fanuc 0i |
